Sequence Controller iSCR-11-THS

RS: Call for Pirce

Stock: Available

Sequence Controller iSCR-11-THS

The Sequence Control (iSCR-11-THS) for Air Conditioners is designed by Inhimak Inc., to manage and sequencing two Air Conditioners depends upon times and temperature. Both Air Conditioners run as per turn as well as set temperature. It reads the user parameter from non volatile memory where user saved all necessary parameters. Both Air Conditioners run turn by turn; this mechanism enhances Air Conditioners life span. When room temperature is above the set temperature and below the set temperature + hysteresis (22 C + 4 C = 26 C) only one Air Conditioner which will have the turn will remain ON and if more than set temperature + hysteresis the second Air Conditioner will also turn ON.

NOTE: Electric Panel not included.

Shipping: Same Day Delivery

Buy Now
*  One (1) PC's Minumum

Tell a Friend     |     Feedback     |     Price Alert

Gallery

Gallery

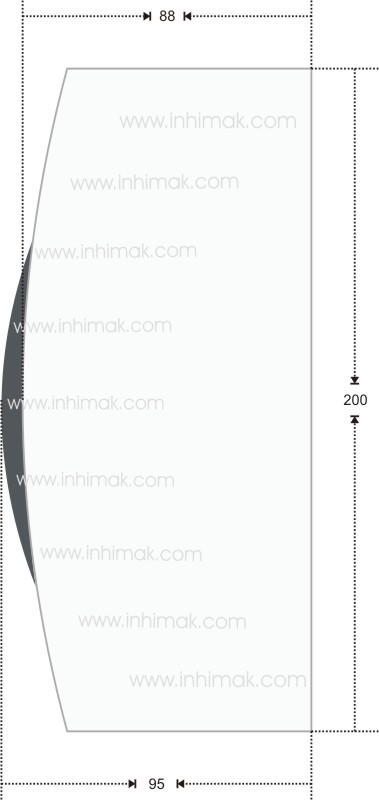

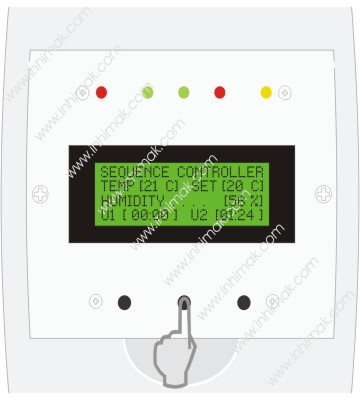

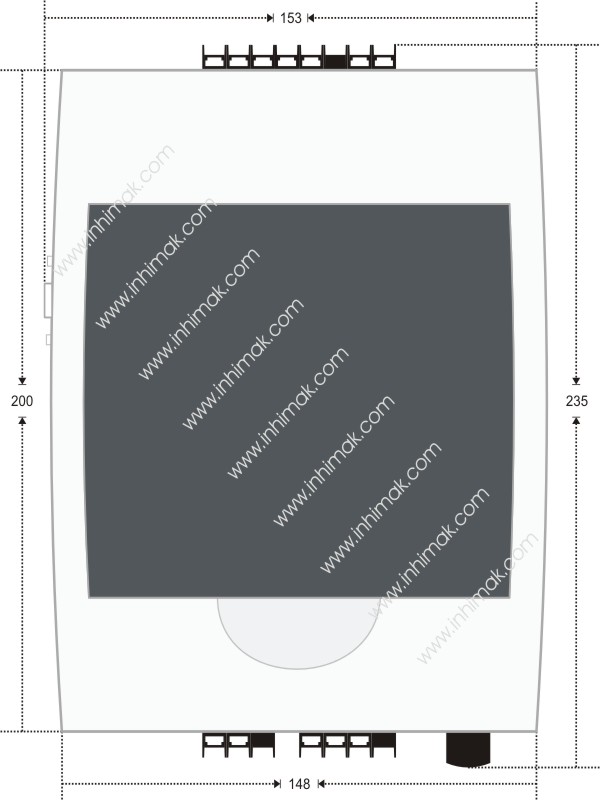

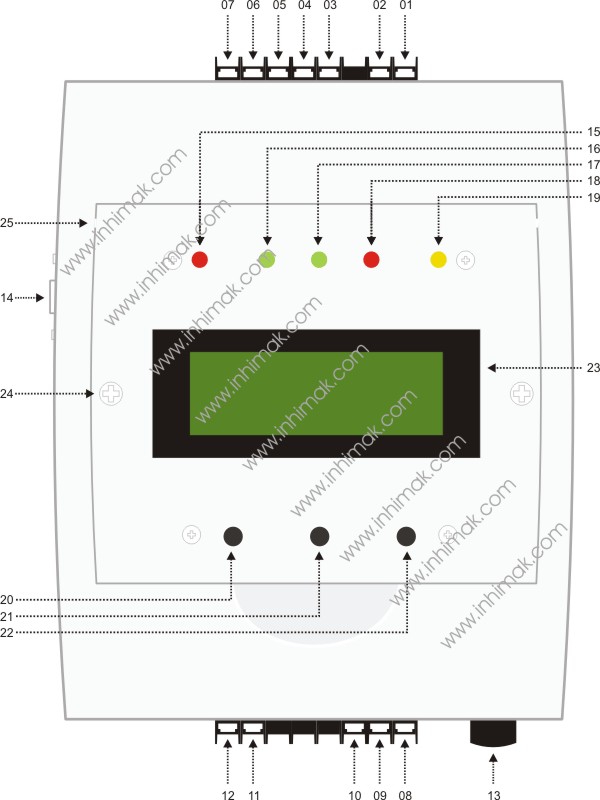

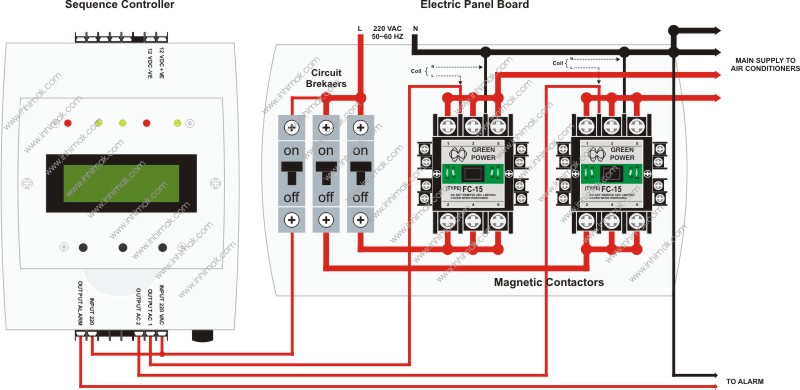

Sequence Controller iSCR-11-THS PakistanSequence Controller iSCR-11-THS LahoreSequence Controller iSCR-11-THS IslamabadSequence Controller iSCR-11-THS KarachiSequence Controller iSCR-11-THS RawalpindiSequence Controller iSCR-11-THS Drawing

Featurs

Featurs

The Sequence Control (iSCR-11-THS) for Air Conditioners is designed by Inhimak Inc., to manage and sequencing two Air Conditioners depends upon times and temperature. Both Air Conditioners run as per turn as well as set temperature. It reads the user parameter from non volatile memory where user saved all necessary parameters. Both Air Conditioners run turn by turn; this mechanism enhances Air Conditioners life span. When room temperature is above the set temperature and below the set temperature + hysteresis (22 C + 4 C = 26 C) only one Air Conditioner which will have the turn will remain ON and if more than set temperature + hysteresis the second Air Conditioner will also turn ON. If temperature didnt decrease and increase more than set temperature + hysteresis + 2 (22 C + 4 C + 2 C = 28 C) at the time alarm will be activated. If room temperature goes low to set temperate till 3 minutes both Air Conditioners will switched OFF and will go in energy saving mode.
Microcontroller based Sequence Controller for Air Conditioners.
Alpha Numeric 4 x 20 LCD.
Storage Memory for set points the Time and the Temperature.
Parameters setting from Sequence Controller Module.
Bypass Air Conditioner 1 automatically if hardware found any failure.
Energy Saving mode if cooling not required.
Temperature Set Point 18 C to 30 C.
Timer Set Point 1 HR to 12 HR for both Air Conditioners.
Current (Room) Temperature Display.
Set Temperature Display.
Relative Humidity Display.
Air Conditioners 1 Timer Display.
Air Conditioners 2 Timer Display.
Over Temperature Alarm.

Specification

Specification

Display
LCD 4 x 20 Alphanumaric
RS-232
Optional
RS-485
Optional
Alarm
Yes Dry Contact
AC Controll
1 + 1
Temparatur
Yes ( 18 C - 30 C )
Humidity
Yes
Hieght
235 mm
Width
153 mm
Depth
95 mm
